AIM MyChron Kart Accelerator/Brake Pedal Position Sensor Kit

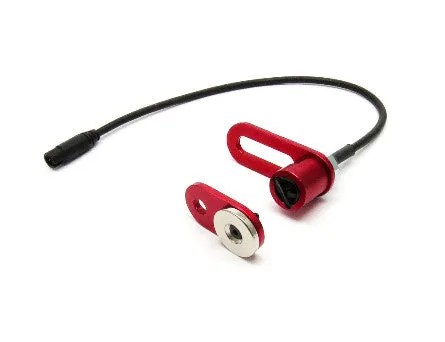

This sensor uses a magnet to send kart throttle or brake position data to your MyChron5 or MyChron 4 kart data logger. Easy to connect and program the AiM MyChron Kart pedal Position sensor can give accurate data analysis of brake lock-up, and throttle position VS RPM & Lateral and Longitudinal G's. This is one of AiM's best kart sensors.

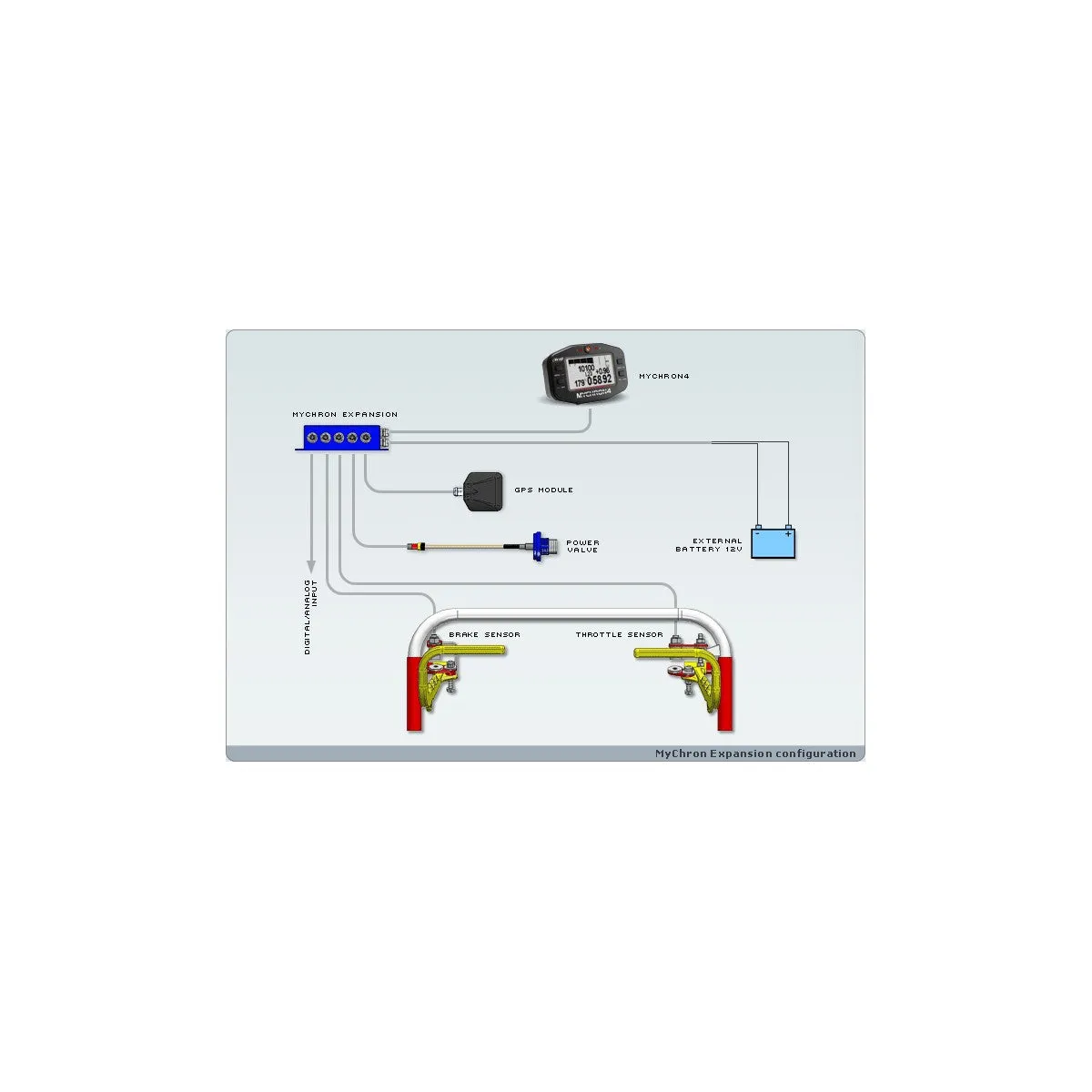

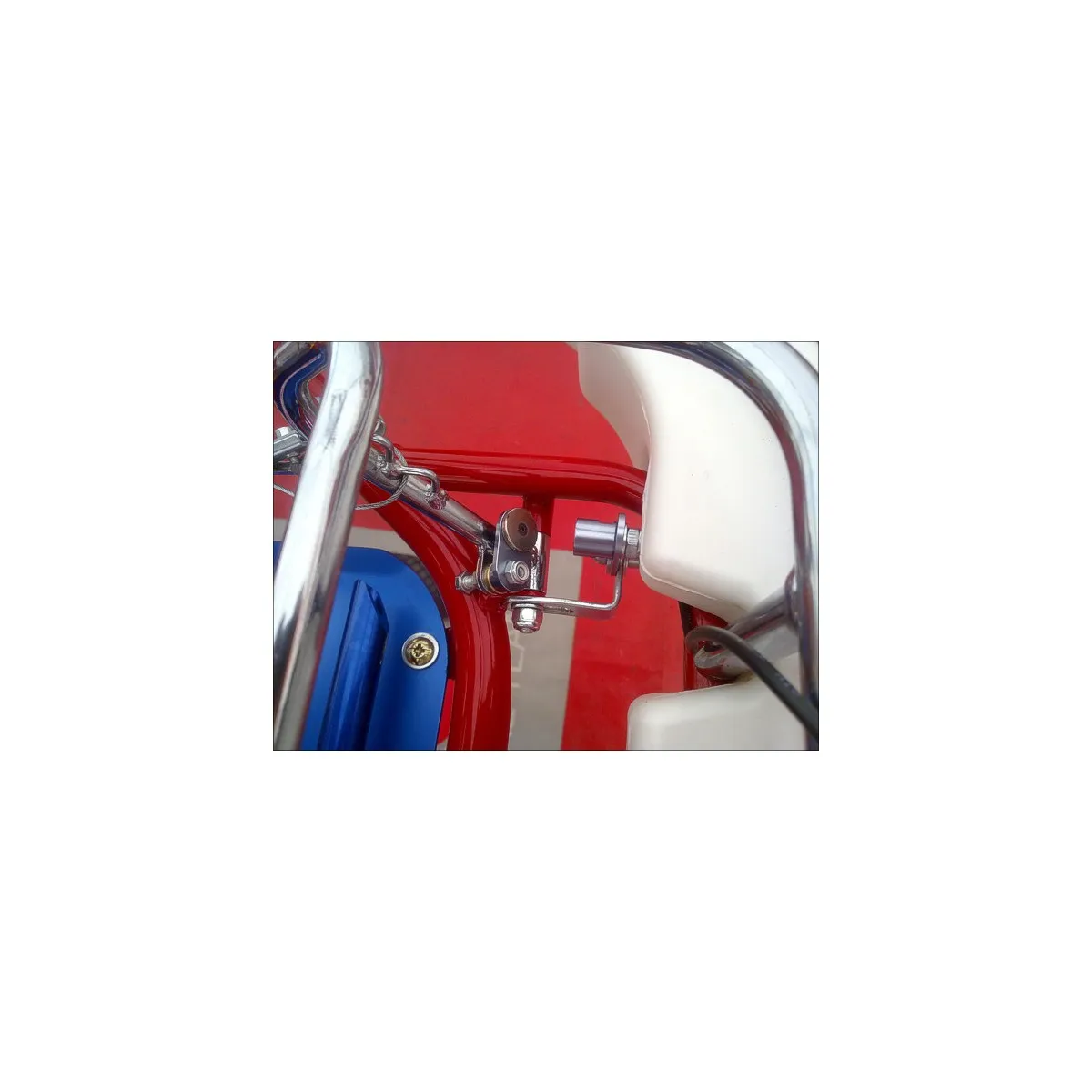

Simply install the magnet on the pedal near the pivot, and install the sensor in front of the magnet on the chassis. Connect the sensor to your MyChron4 Expansion box and calibrate using the MyChron4 calibration page.

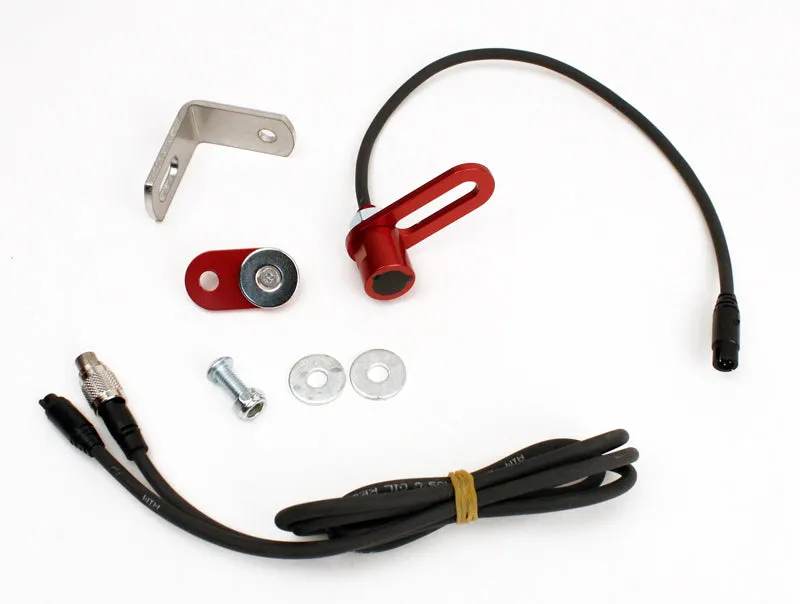

Measures up to 35mm of pedal travel (magnet-to-sensor distance must be no less than 5mm at full throttle and no more than 40mm at zero throttle). Can be used on either brake or throttle pedal. Requires eBox, sold separately. Kit includes sensor, magnet, bracket kit, and 1 meter (3 ft) 719-to-712 (4-pin) adapter cable.

Note: This sensor is designed and set up for use on karts only. This sensor is not listed in the Race Studio configuration software.
