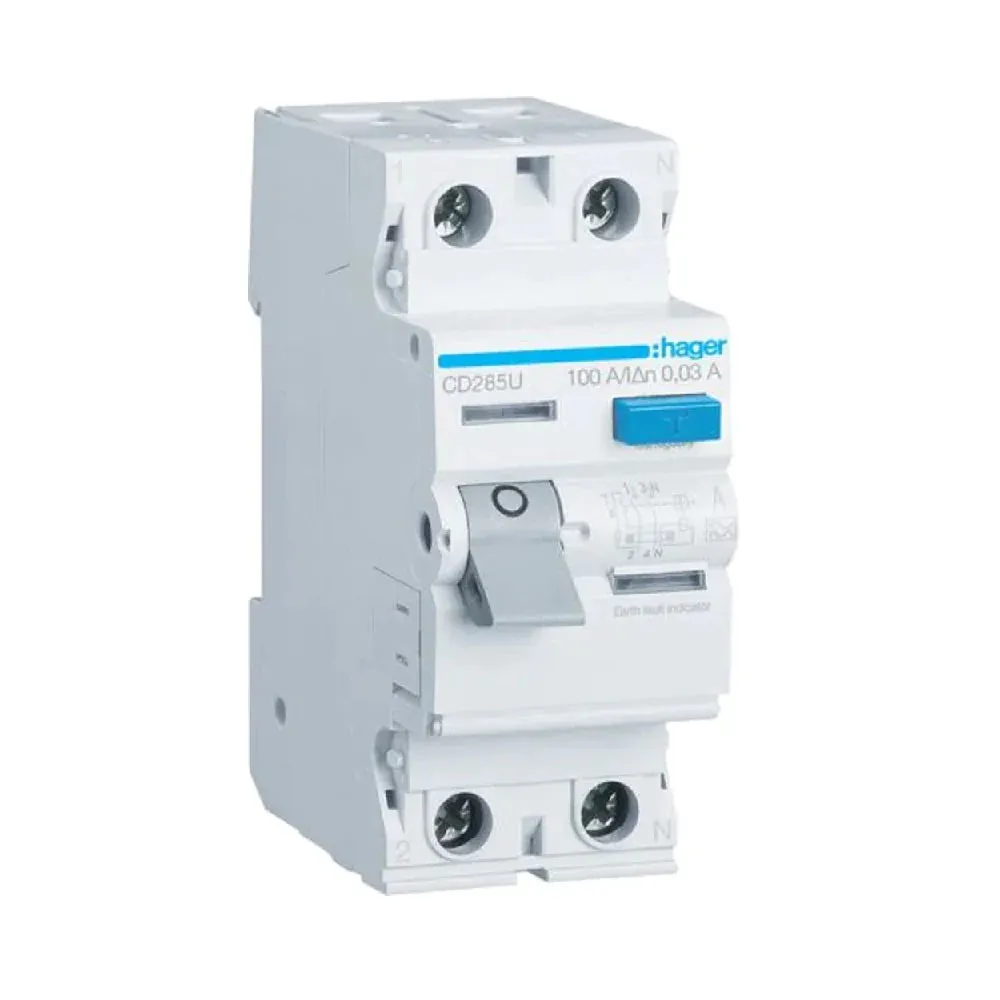

CD285U RCCB 2P 100A 30mA A

rchitecture Neutral position right Number of poles 2 P Type of pole 2 P Fixing mode DIN rail type O (symmetrical) Main electrical features Frequency 50 Hz Rated current 100 A Type of supply voltage AC Voltage Rated impulse withstand voltage 4000 V Electric current Rated residual operating current 30 mA Rated conditional short-circuit current Inc according to EN 61008-1 6 kA Electric current / temperature Rating current 30°C 100 A Dimensions Depth of installed product 70 mm Height of installed product 83 mm Width of installed product 35 mm Power Total power loss under IN 14,3 W Tripping Short-time delayed tripping No Endurance Electric endurance in number of cycles 2000 Number of mechanical operations 4000 Capacity Number of modules 2 Installation, mounting Tightening torque 3,3Nm Connection Type of connection with screw Equipment Can be accessorized Yes Standards Standard text EN 61008-1 European directive WEEE concerned Safety Protection index IP IP20 Residual current type A Use conditions Operating temperature -25…40 °C
