Product Details
＋

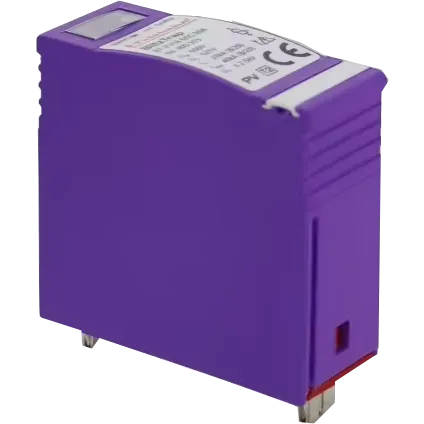

Trent FBT P BCM12.5 275 RM (3 0) (Modules), MODULES ONLY for Class I,II / Type 1,2 / B,C, AC Surge Protection Device (SPD), 12.5KA/60kA per Pole
Specifications
| Trent part number | FBT P BCM12.5 275 RM (3 0 Modules) |
| Nominal Voltage | 440VAC |
| No of Poles | 3 |
| Category IEC / EN / VDE | Class I,II / Type 1,2 / B,C |
| Location of use | Main Distribution Boards |
| Protection modes | L/N-PE, L-PEN, L-N, N-PE High Energy MOV and GDT |
| Additional Remote Contacts | YES |
| Protective element | MOV |
| Surge discharge rating | Imax up to 37.5 kA(10/350us) / 100kA(8/20us) or 12.5kA(10/350us) / 60kA(8/20us) per pole |
| Internal protection and safety | Thermal disconnector in each MOV |
| Standards | IEC/EN 61643-11 |
