Name: Fluke Networks FQM-M Fiber Quickmap Main; Multimode Fault Finder
SKU: 1004228

Product Details ＋

(Item no. 4802737)

NOTE: Fluke Network lead times can vary due to component and supply issues.

Fiber QuickMap
Works on multimode fiber, 9/125µm and 62.5/125 µm
850 nm output wavelength. Measure up to 4,921 feet (1,500 metres) of fiber in seconds
Locate severe bends, high-loss splices, breaks and dirty connectors in singlemode fiber
Measure and locate high-loss splices
Locate the end of a fiber
Find potential sources of high bit error rates caused by reflectance from dirty or poor connections
Detects live optical signals before it begins testing
Quick set-up. Connect your fiber and press the Test button. No lengthy set-up necessary
Find problems quickly. Six-second test time—no more blind troubleshooting that can waste hours
Change the Index of Refraction (IOR) to improve fiber length accuracy
Visible in dark areas. Backlighted display turns off automatically
Removable SC adapter is easily cleaned

Works on multimode fiber,

9/125µm and 62.5/125 µm

850 nm output wavelength

Measure up to 4,921 feet (1,500 metres) of fiber in seconds

Locate the end of a fiber

Locate severe bends, high-loss splices, breaks and dirty connectors in singlemode fiber

Measure and locate high-loss splices

Find potential sources of high bit error rates caused by reflectance from dirty or poor connections

Locate Faults beyond the range of a Visual Fault Locator (VFL)

VFLs work well for exposed lengths of fiber near a patch panel by illuminating bad connections and breaks. They are not very helpful for cable runs more than a few meters, or when the cable is not visible or accessible, or when the laser light can’t penetrate the jacket.

Optical Time Domain Reflectometers (OTDR) provide graphical data and analysis along the entire length of a cable, way beyond the reach of a VFL, but they can be expensive and require more time and skill to operate.

Fiber OneShot PRO and Fiber QuickMap fill the gap between a VFL and an OTDR. These models have the simplicity of a VFL, and provide distance and power information on high losses, breaks, and the end of the fiber. They also identify live fiber.

Feature	Typical VFL	Fiber OneShot PRO and Fiber QuickMap	Typical OTDR
Illuminates high loss areas	✓
One button operation	✓	✓
Long range		✓	✓
Live fiber detection		✓	✓
Numeric distance display		✓	✓
Numeric reflective loss (dB) display		✓	✓
Graphic display of traces			✓
Trace analysis			✓
Power Meter Options			✓
Data Storage			✓
Data Transfer to PC or Cloud			✓
Cost	Low	Low-Medium	High

Applications:

Measure and locate high-loss splices
Measure and locate high loss connections and breaks
Locate the end of a fiber
Find potential sources of high bit error rates caused by reflectance from dirty or poor connections
Detects live optical signals before it begins testing

Features common to both Fiber OneShot PRO and Fiber QuickMap

Quick set-up. Connect your fiber and press the Test button. No lengthy set-up necessary
Find problems quickly. Six-second test time—no more blind troubleshooting that can waste hours
Key information visible on a large display; power loss in db and distance in meters or feet
Set loss and reflection limits
Change the Index of Refraction (IOR) to improve fiber length accuracy
Visible in dark areas. Backlighted display turns off automatically
Removable SC adapter is easily cleaned
Optional LC, ST and FT interchangeable adapters are available
Long battery life, 1,500 tests (typical) from 2 AA alkaline batteries
Rugged construction; vibration and drop tested to 1 meter

When and Where to Use Fiber OneShot PRO and Fiber QuickMap

Fiber OneShot PRO provides immediate and in-depth visibility into a singlemode fiber cable (below).
Fiber QuickMap operates the same, except on multimode fiber up to 1,500 meters / 4,921 feet.

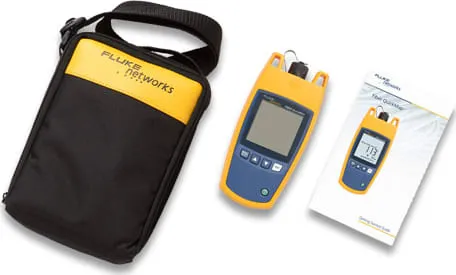

In The Box

Manuals/Guides

Manufacturer Specs

Fluke Networks Fiber QuickMap Series Specifications
Operating temperature with the battery	0ºC to 50ºC
Non-operating temperature	-20ºC to 60ºC
Operating relative humidity (without condensation)	95% (10ºC to 35ºC) 75% (35ºC to 40ºC) uncontrolled < 10ºC
Vibration	Random, 5 Hz to 500 Hz, MIL-PRF-28800F CLASS 2
Shock	1 meter drop test
Altitude	3000m
EMC	EN 61326-1: 2004
Battery type	2 AA alkaline batteries (no battery charger)
Battery life	1500 tests (typical)
Laser safety	Class 1 CDRH Complies to EN 60825-2
LCD type	Backlit black and white (segments)
Index of refraction range	1.45 to 1.5 (factory default is 1.496)
Auto turn off	Automatically turns off after 5 minutes if no keys are pressed. Backlight turns off first.
Factory calibration interval	None
Output wavelengths	850 nm ± 10 nm
Laser classification	Class 1 CDRH Complies to EN 60825-2
Dynamic range	>11 dB
Maximum distance	1500 meters or 4921 feet
Maximum number of incidents shown	9
Distance accuracy (0 m to 1500 m or 0 ft to 4921 ft)	± (1 m 0.1 % x length) for reflective incidents1 ± (3 m 0.1 % x length) for non-reflective incidents²
Testing speed	< 6 seconds typical
Connector	Removable/cleanable SC adapter, UPC polish
Fiber types tested	50/125 µm or 62.5/125 µm multimode
Detection of reflective incidents³	-35 dB default threshold (User selectable: -20 dB to -45 dB in 5 dB increments)
Reflectance accuracy⁴	± 4 dB
Maximum reflectance measurement	-20 dB
Detection of loss incidents⁵	0.70 dB default threshold (user-configurable from 0.5 dB to 6.1 dB in 0.2 dB increments)
Bulkhead quality	If no fiber is attached or if the connector is dirty, the troubleshooter displays 0 m or 0 ft.
Live fiber detection	Detects optical signals from 600 nm to 1050 nm and shows ACTIVE LINE if a signal is there. Looks for a signal every 3 seconds after the first detection. 7 dB maximum input power.
Certifications and compliance	Conforms to relevant European Union directives Conforms to relevant Australian standards Listed by the Canadian Standards Association CSA C22.2 No. 61010.1.04 Conforms to FCC Rules, Part A, Class A
± user-configurable Index of Refraction (IOR) error ± the incident location error. Incident location error for reflective incidents: ±1 m from 1 m to 1.5 km. ± user-configurable Index of Refraction (IOR) error ± the incident location error. Incident location error for non-reflective incidents: ±2 m for lengths £15 m, otherwise ±1 m. Finds and gives the location of an incident that has a reflectance larger than -55 dB. Detects incidents >1m after the bulkhead connector when the bulkhead reflectance is <35 dB. Detects incidents >3 m after an incident when the incident reflectance is <35 dB. With a backscatter coefficient of -63 dB at 850 nm using a calibrated -14 dB reference. Detects incidents >10 m after the bulkhead connector or any prior incident when the bulkhead reflectance is <-35 dB and the reflectance of any prior incident is <-35 dB. The maximum link loss prior to the incident is <7 dB.
