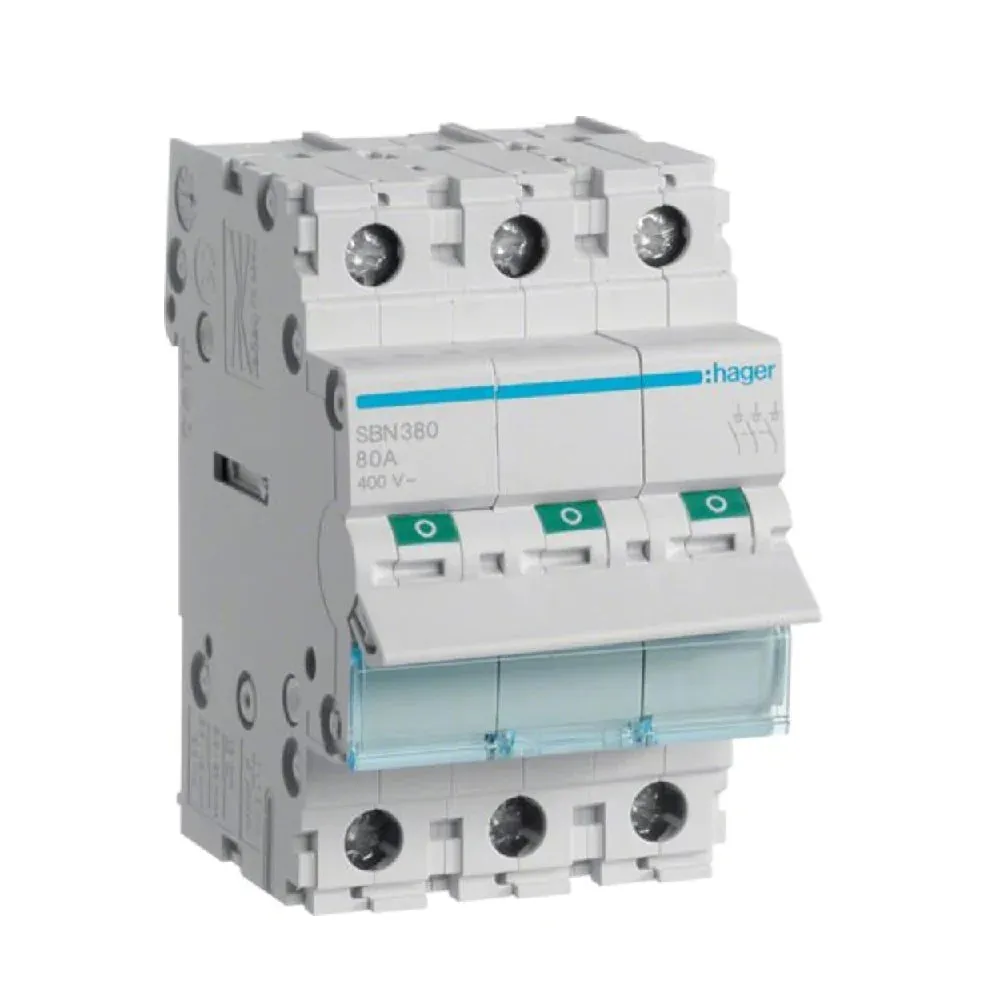

SBN380 3-pole, 80A Modular Switch

Technical characteristics Architecture Neutral position without neutral Number of poles 3 P Type of pole 3 P Main electrical features Rated operational voltage Ue 400 V Frequency 50/60 Hz Rated current 80 A Voltage Rated insulation voltage 440 V Rated impulse withstand voltage 6000 V Dimensions Depth of installed product 68 mm Height of installed product 83 mm Width of installed product 52,5 mm Power Total power loss under IN 8,1 W Endurance Electrical durability at nominal load in AC22 in operating cycles 2500 Number of mechanical operations 40000 Capacity Number of modules 3 Installation, mounting Tightening torque 3,6Nm Connection Connection cross-sect. flexible conductor 6 / 35mm² Connection cross-sect. rigid cable 6 / 50mm² Type of connection with screw Standards Standard text IEC 60947-3 European directive WEEE concerned Safety Protection index IP IP20 Use conditions Operating temperature -20…50 °C
