Product Details
＋

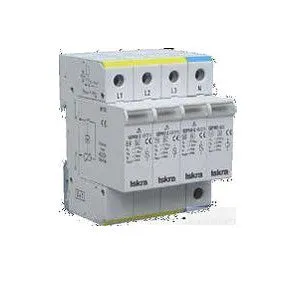

ISPRO C 160/440 (4 0), Modular Surge Protection Device (SPD) 4 Pole 40kA, 440VAC, DIN Rail Mount. For Sub Distribution Boards
Specifications
| Iskra Doo part number | ISPRO C 160/440 (4 0) |
| Nominal Voltage | 440VAC |
| No of Poles | 4 (via 4 modules) |
| Category IEC / EN / VDE | Class II / Type 2 / C |
| Location of use | Sub Distribution Boards |
| Additional Remote Contacts | NO |
| Protection modes | L/N-PE |
| Protective element | MOV GDT |
| Surge discharge rating | Imax up to 40 kA |
| Internal protection and safety | Thermal disconnector in each MOV |
| Standards | IEC/EN 61643-11 |
