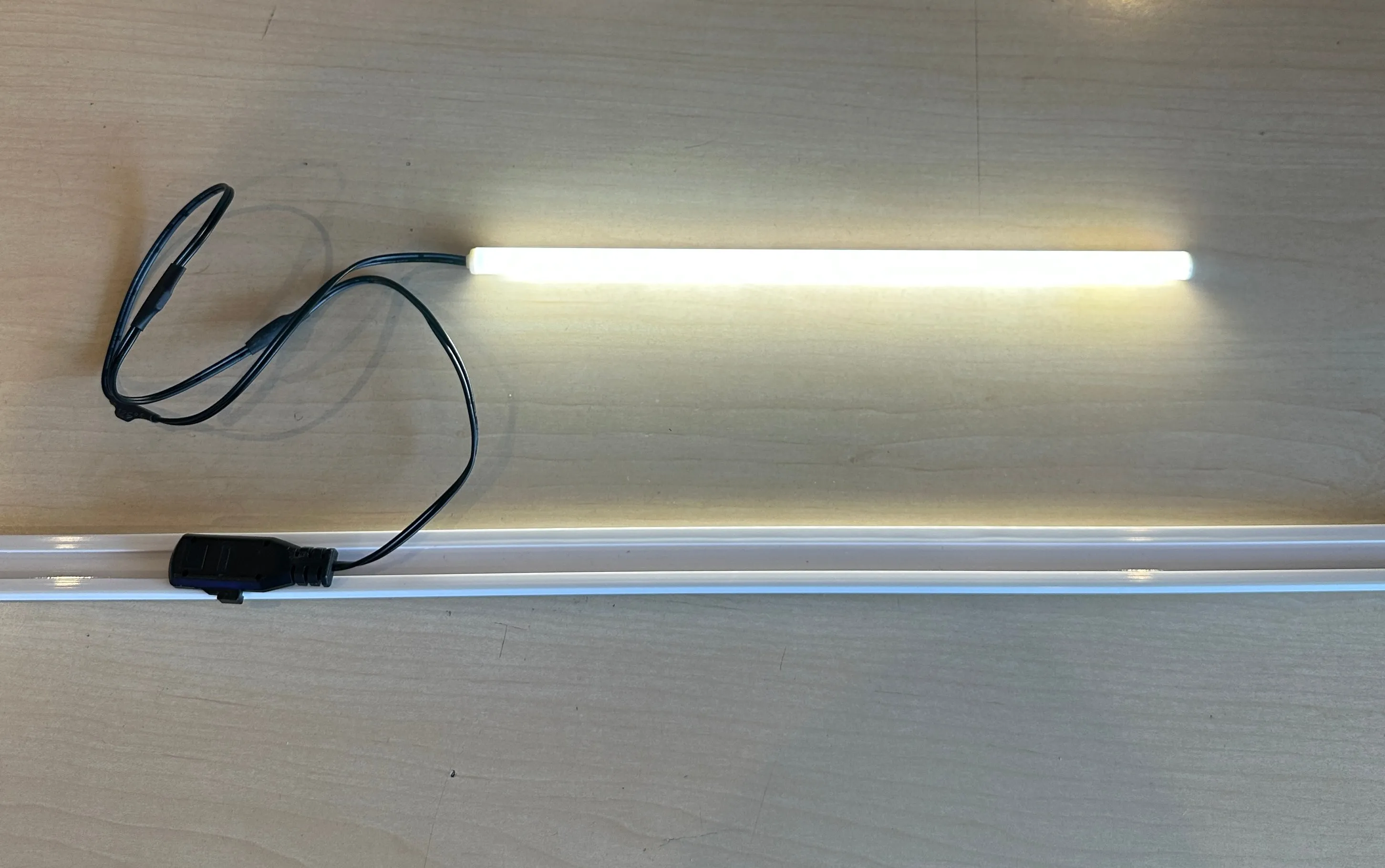

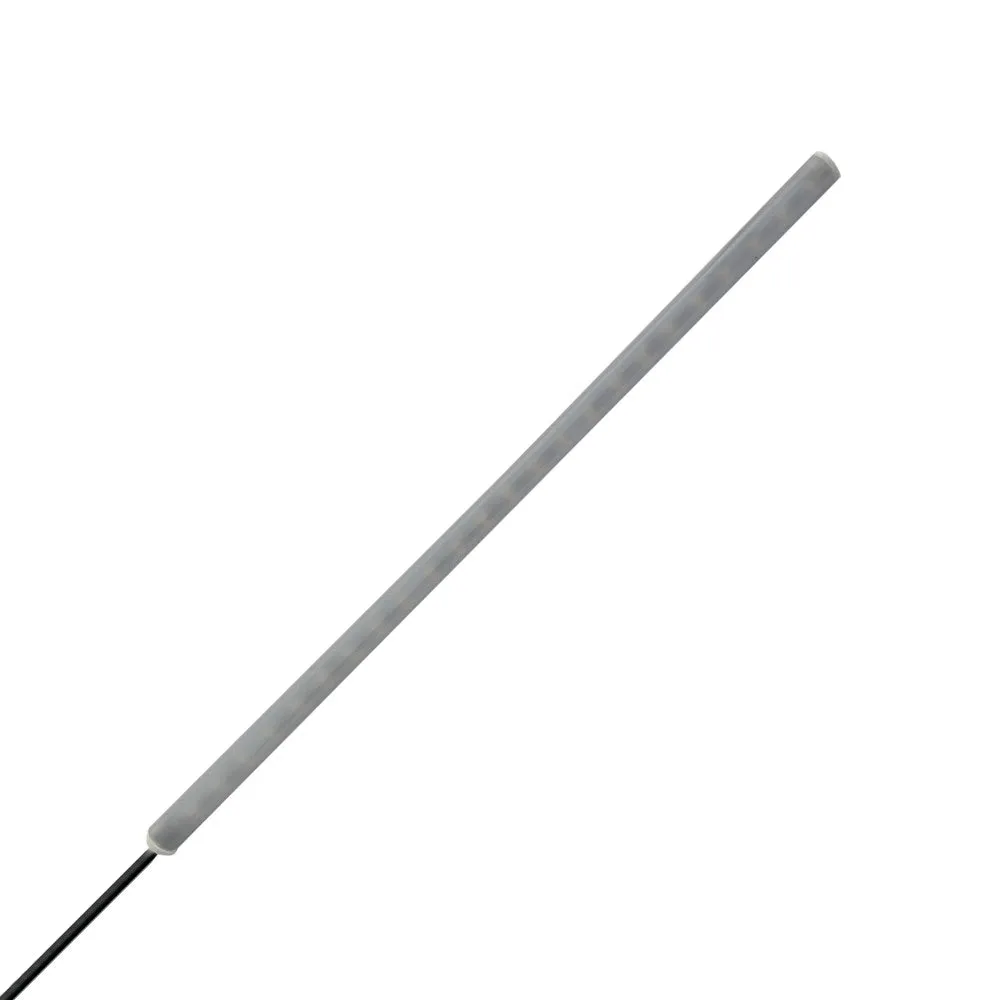

The LED Ultra Slim Light Bars offer high efficiency, and low voltage lighting needed to create the perfect illumination for shelving applications. The brackets for these fixtures enable you to rotate the light beam to the exact angle desired.

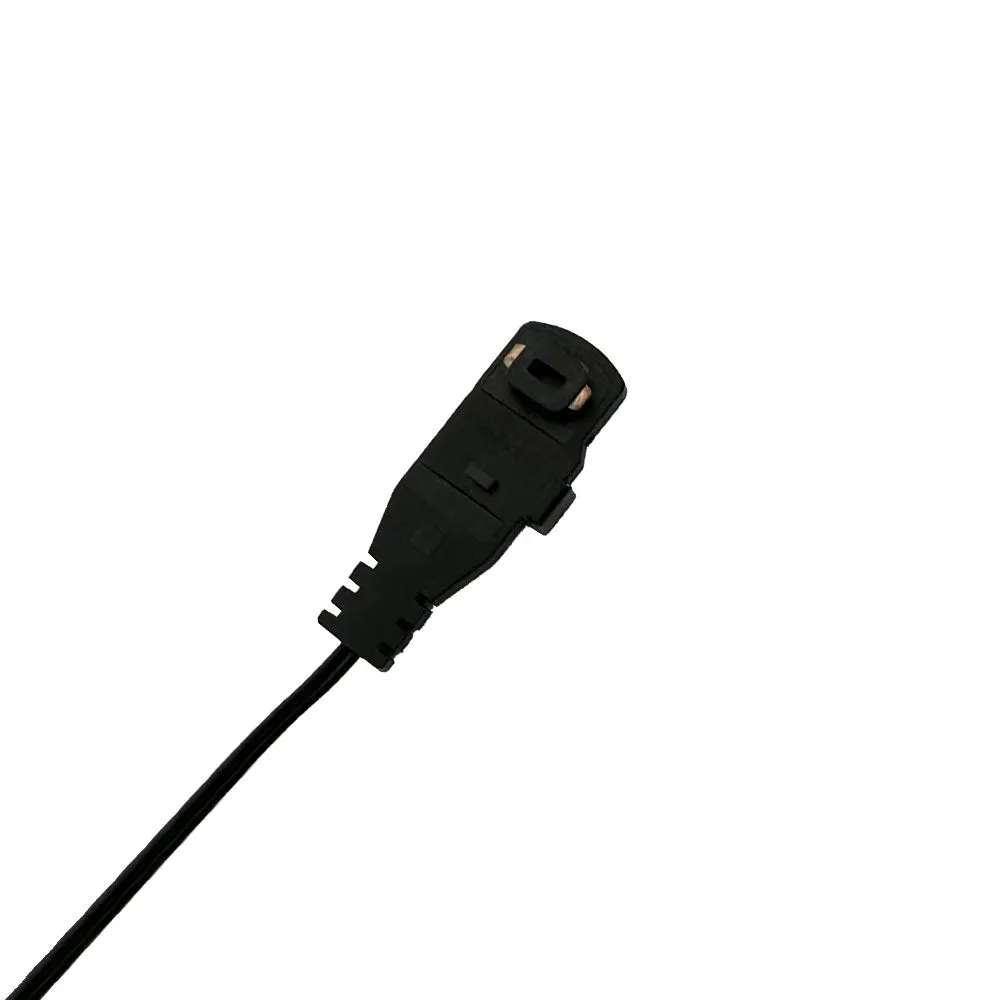

Each light bar comes with a twist-in power plug that's compatible with our LED Mini Track system. It provides flexibility with various mounting clips, jumpers, and power supply options.

* Required: Requires , , , and .

to view our selection of all track system components.

Key Features

• Ultra low-profile design
• Effortless twist-on installation to PVC linear track systems
• Vibrant and uniform illumination
• Energy-efficient LED technology
• Durable construction for long-lasting performance
• Versatile for various backlit graphics box applications
• Sustainable and cost-effective
• Options: 10 in. - EL-M10-41, 22.5 in. - EL-M23-41, 34 in. - EL-M34-41, or 45 in. - EL-M45-41

Applications

• Tradeshow
• Exhibit

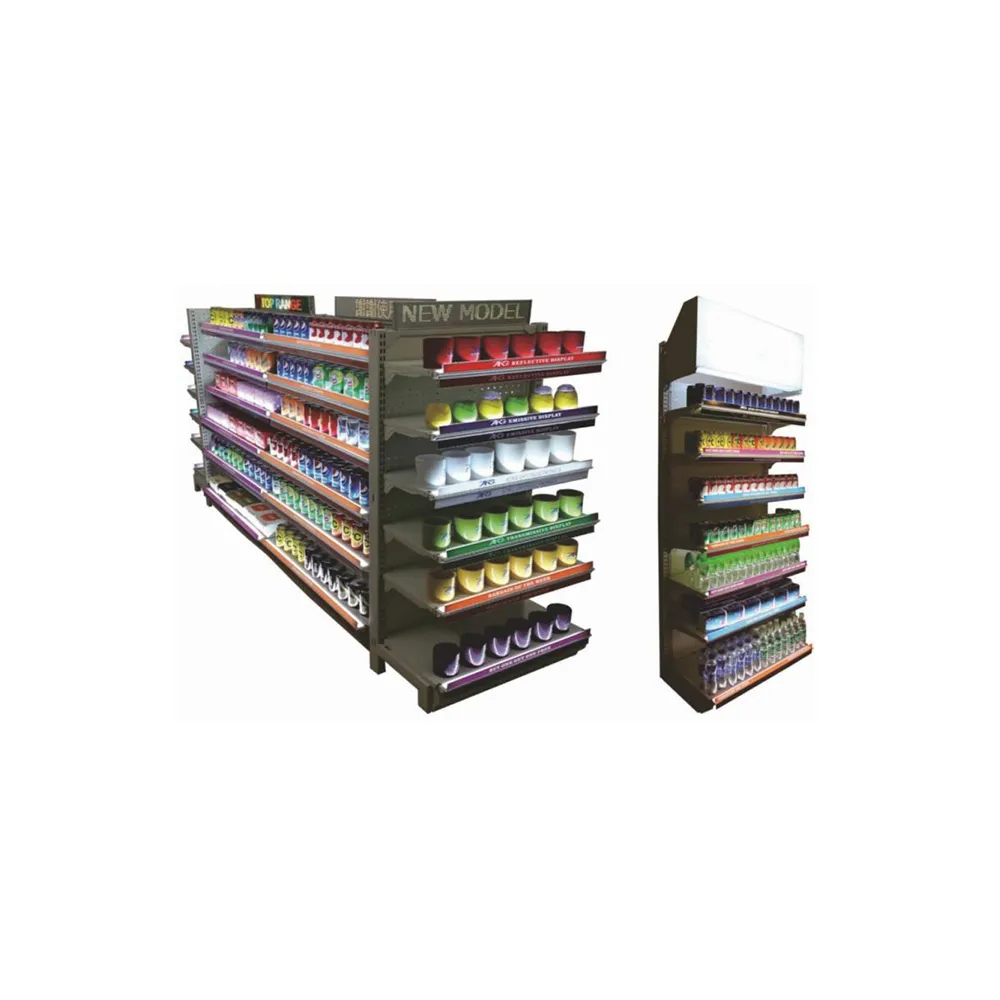

• Retail Displays

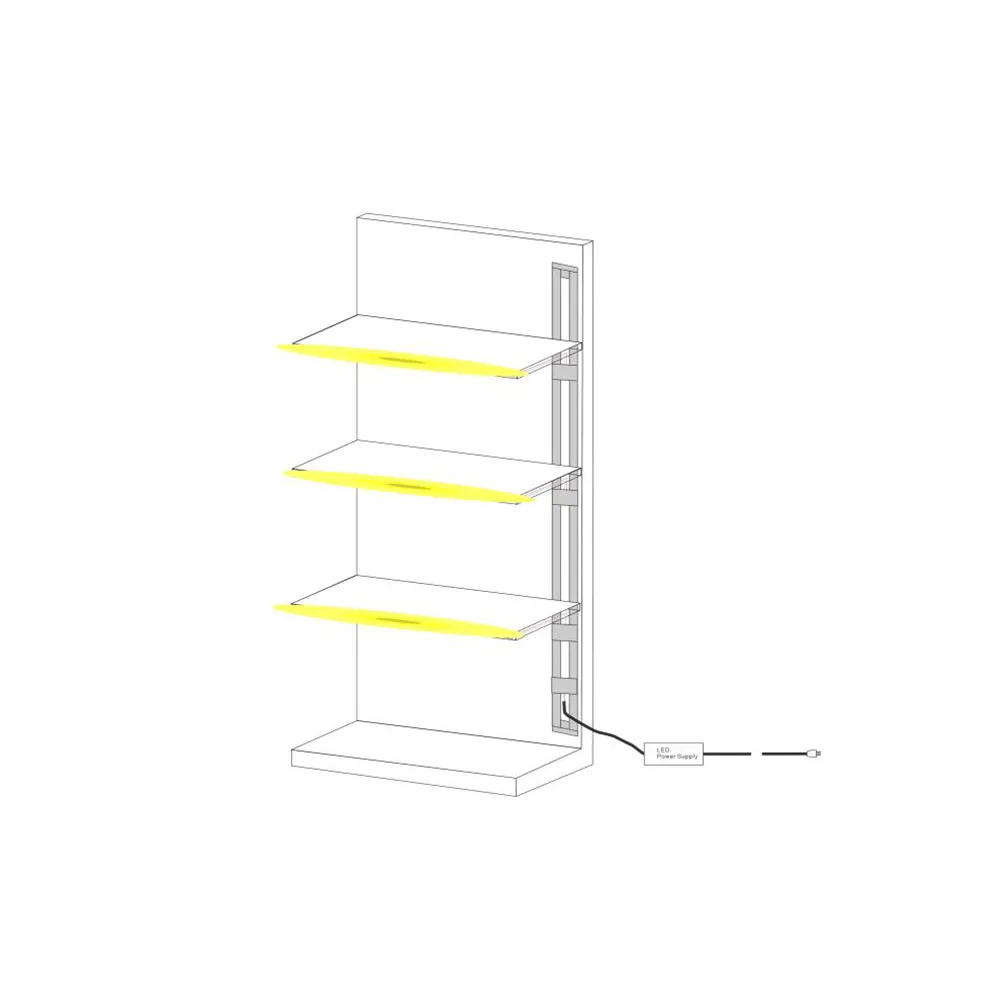

• Shelf Lighting

• Under-Cabinet

Specifications

• Brightness: 60 Lm/watt
• Power: 2 watts (10 in), 4.3 watts (22.5 in), 6.7 watts (34 in), 9.2 watts (45 in)
• Input Voltage: 24V DC
• LED CCT: 4000K
• CRI: 80
• Dimmable: No
• Environment: IP20 - Dry Location
• Beam Angle: 120°
• Operating Temperature: -20 ≈ 50 °C
• Length: 10 in, 22.5 in, 34 in, or 45 in
• Diameter: 0.35 in (9 mm)
• Rating: UL Listed
• Avg. Lifetime: ± 30,000 - 50,000 hours
