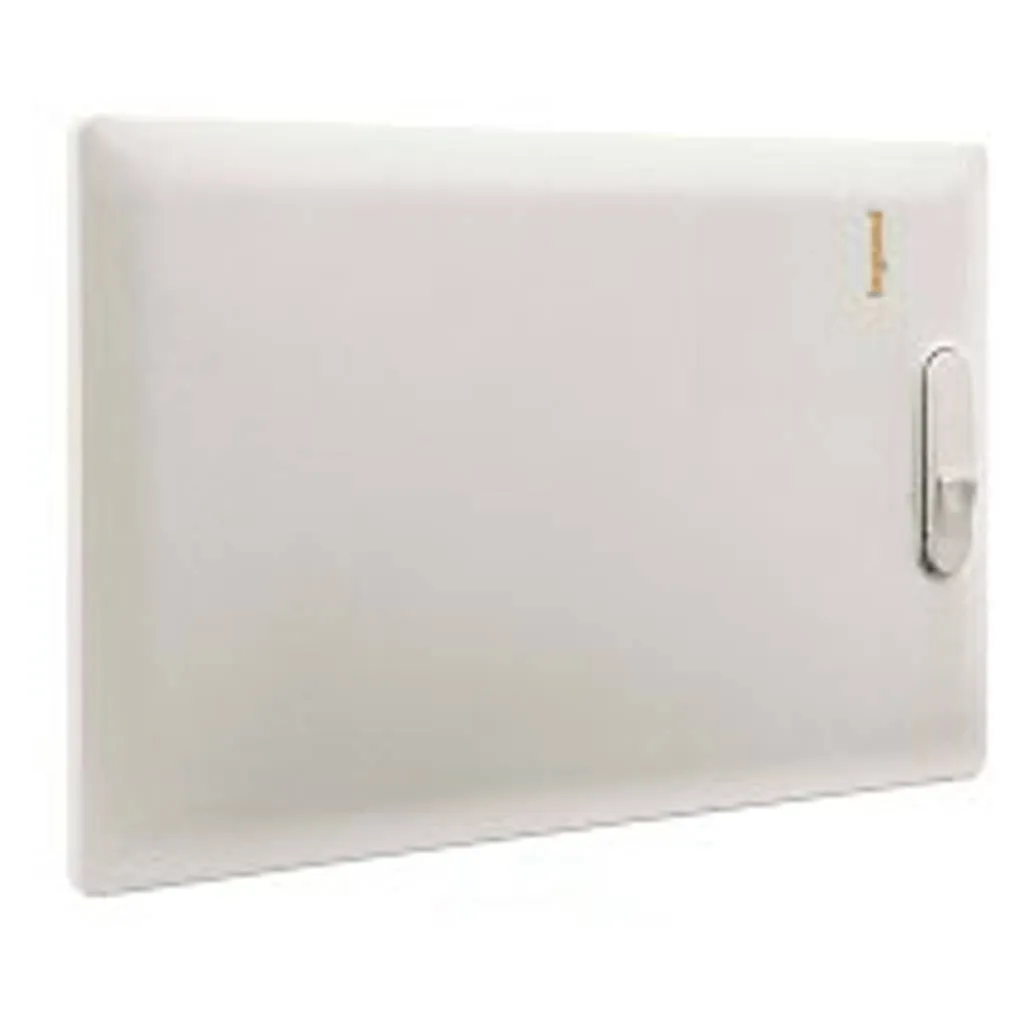

Product Description
-
As per IEC 61439-3
-
Suitable for Flush Mounting and Surface Mounting
-
With 100 A Copper Busbar for each phase
-
With Neutral bar, Earthbar and Cable ties for Cable management
-
Fully insulated busbar & shrouded Neutral bars
-
Improved Pan assembly for ease of installation
-
Prefitted masking sheet
-
Reversible Door for IP 43 & IP 54 DB's
-
With provision for FP MCB/Isolator/RCCB/RCBO as incomer and SP
-
MCB's as outgoing
-
Supplied with wireset
-
Can be converted to PPI DB at site using conversion kit
Product Specification
|
Brand |
Legrand |
|
Product Type |
Distribution Board |
|
Model |
Ekinox³ |
|
Product Code | No Of Ways | No Of Modules |
5076 10 | 4 Way | 4 M 5076 11 | 8 Way | 8 M 5076 12 | 12 Way | 12 M 5076 13 | 16 Way | 16 M 5076 14 | 18 Way | 18 M 5076 15 | 20 Way | 20 M |
|
No Of Poles |
Single Pole Neutral |
|
IP Protection |
IP 43 |
|
Warranty |
As Per Manufacturer Terms and Condition |
