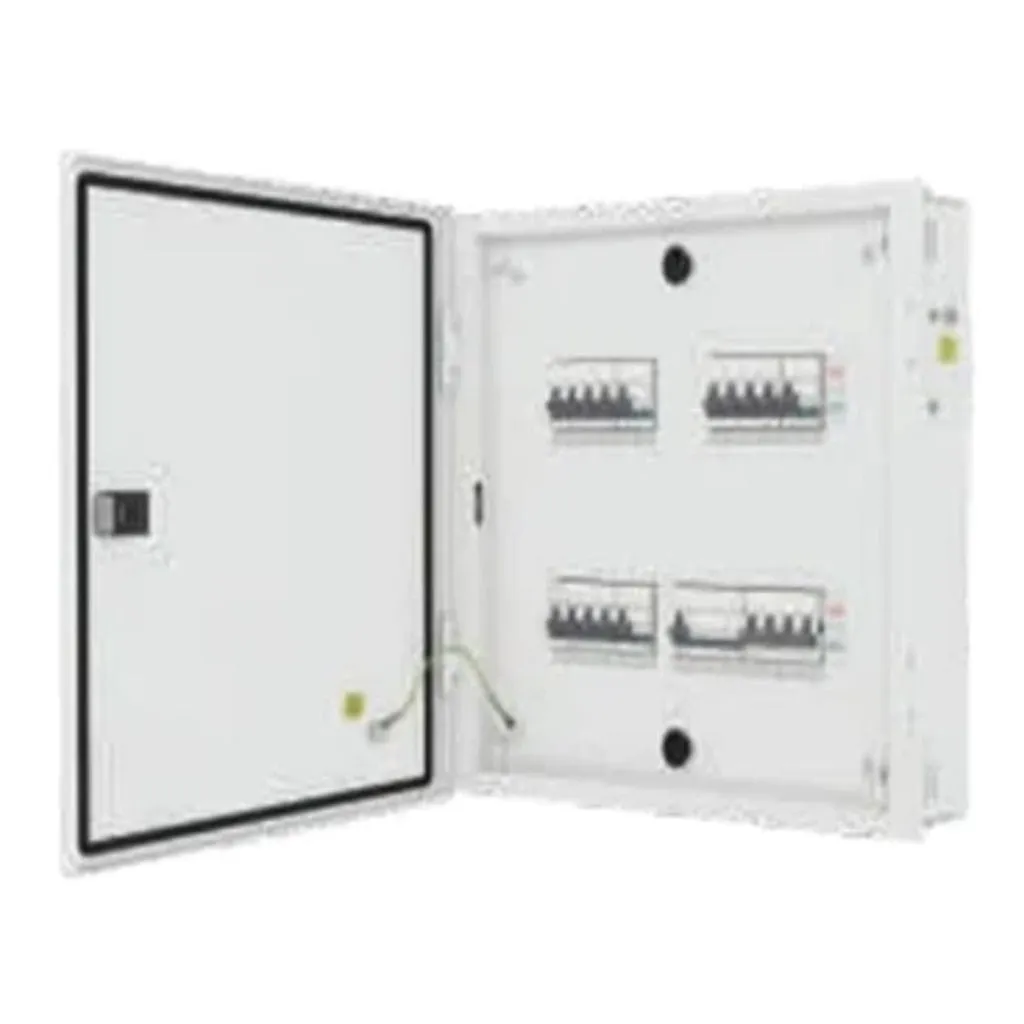

![L&T [ Lauritz Knudsen ] Horizontal PPI Distribution Boards Metal Door](https://www.precisionhea.shop/image/lampt-lauritz-knudsen-horizontal-ppi-distribution-boards-metal-door_yLct9I_1.webp)
Product Details
＋
Product Description
-
Conforms to IS 8623-1 & 3, IEC 61439-1 & 3
-
IK 09-for double door DBs
-
Available in CRCA sheet steel, RAL9003, power coated
-
Ready to use DBs - Provided with 100A insulated phase but-bar netural bar/s with shroud/s earth bar/s sticking saddles cement spill protector! colour-coded interconnecting wire set! cable ties! blanking plates and circuit identification label
-
With provision for DP MCB/Isolater/RCCB/RCBO as incommer and SP MCBs as outgoings
-
IP 54 Metal door
Product Specification
|
No of Way |
Modules |
Model No |
||
|
Incomer |
Sub Incomer |
Outgoing |
||
|
4 Way |
8 |
2 2 |
4 4 4 |
DBHPI00454 |
|
6 Way |
8 |
2 2 |
6 6 6 |
DBHPI00654 |
|
8 Way |
8 |
2 2 |
8 8 8 |
DBHPI00854 |
|
12 Way |
8 |
2 2 |
12 12 12 |
DBHPI01254 |
|
16 Way |
8 |
2 2 |
16 16 16 |
DBHPI01654 |
