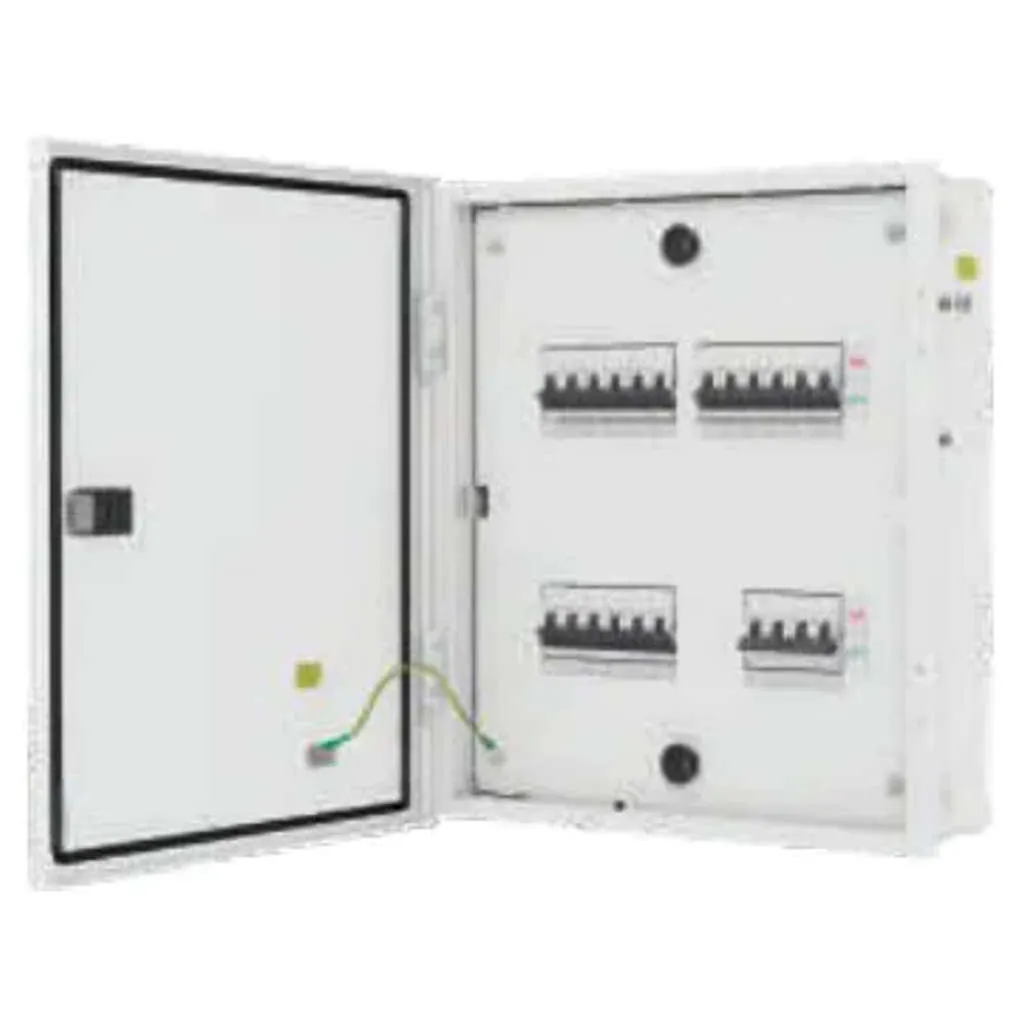

![L&T [ Lauritz Knudsen ] TPN Distribution Boards Metal Door](https://www.precisionhea.shop/image/lampt-lauritz-knudsen-tpn-distribution-boards-metal-door_bRrkv1_1.webp)
Product Description
-
Conforms to IS 8623-1 & 3, IEC 61439-1 & 3
-
IK 08-For Single door DBs, IK 09-for double door DBs
-
Available in CRCA sheet steel, RAL9003, power coated
-
Ready to use DBs - Provided with 100A insulated phase but-bar netural bar/s with shroud/s earth bar/s sticking saddles cement spill protector! colour-coded interconnecting wire set! cable ties! blanking plates and circuit identification label
-
With provision for DP MCB/Isolater/RCCB/RCBO as incommer and SP MCBs as outgoings
-
IP 43-Metal door
Product Specification
|
No of Way |
Modules |
Model No |
|
|
Incomer |
Outgoing |
||
|
4 Way |
4 |
4 4 4 |
DBTPE004DD |
|
6 Way |
4 |
6 6 6 |
DBTPE006DD |
|
4 Way |
8 |
4 4 4 |
DBTPN004DD |
|
6 Way |
8 |
6 6 6 |
DBTPN006DD |
|
8 Way |
8 |
8 8 8 |
DBTPN008DD |
|
12 Way |
8 |
12 12 12 |
DBTPN012DD |
|
16 Way |
8 |
16 16 16 |
DBTPN016DD |
