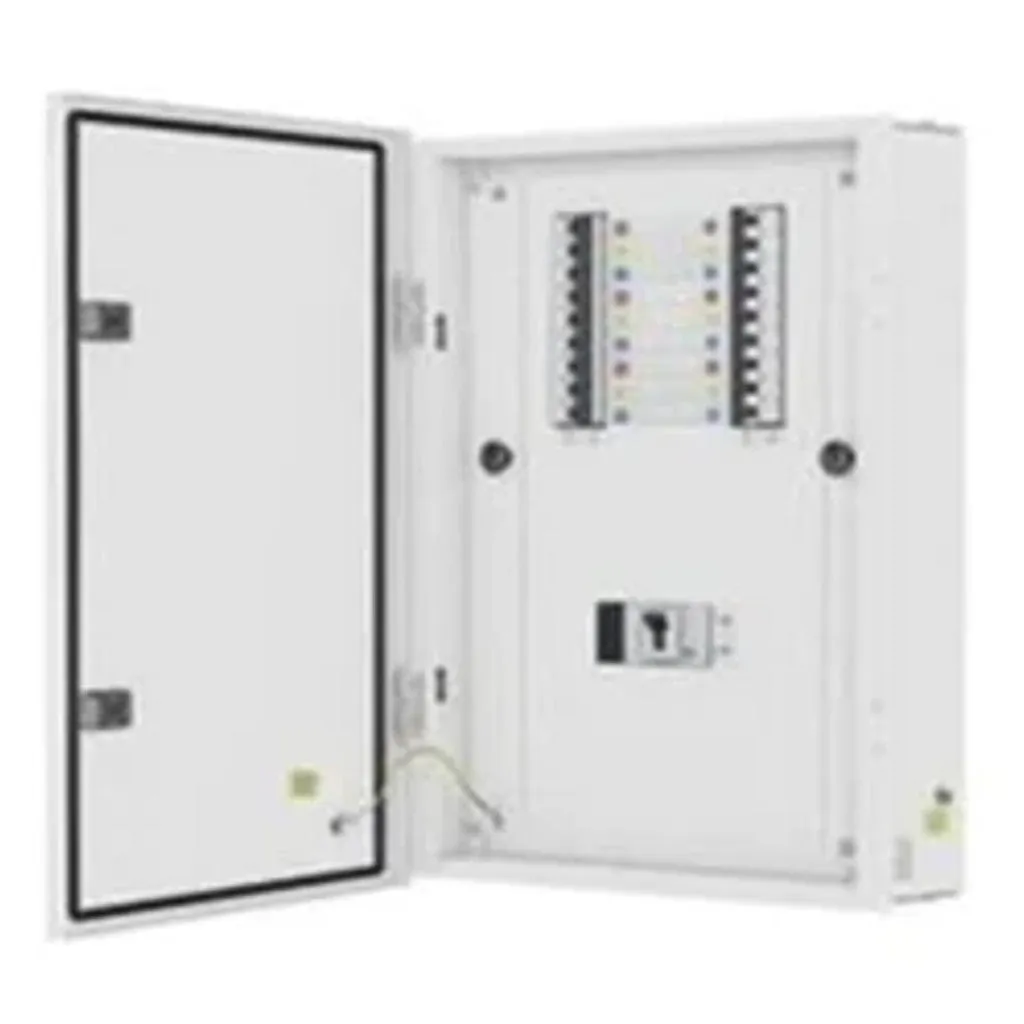

Product Description

• Conforms to IS 8623-1 & 3, IEC 61439-1 & 3

• IK 08-For Single door DBs, IK 09-for double door DBs

• Available in CRCA sheet steel, RAL9003, power coated

• Ready to use DBs - Provided with insulated Vertical phase bus bar/s neutral bar/s with shroud/s earth bar/s sticking saddles cement spill protector/ Color-Coded interconnecting Wire set cable ties/ blanking plates and circuit identification label

• With provision for 3 Pole and 4 Pole MCCB as incomer and SP/TP MCBs as outgoings

• IP 43 – Metal Door

• Up to 125 A MCCB Incomer

Product Specification
