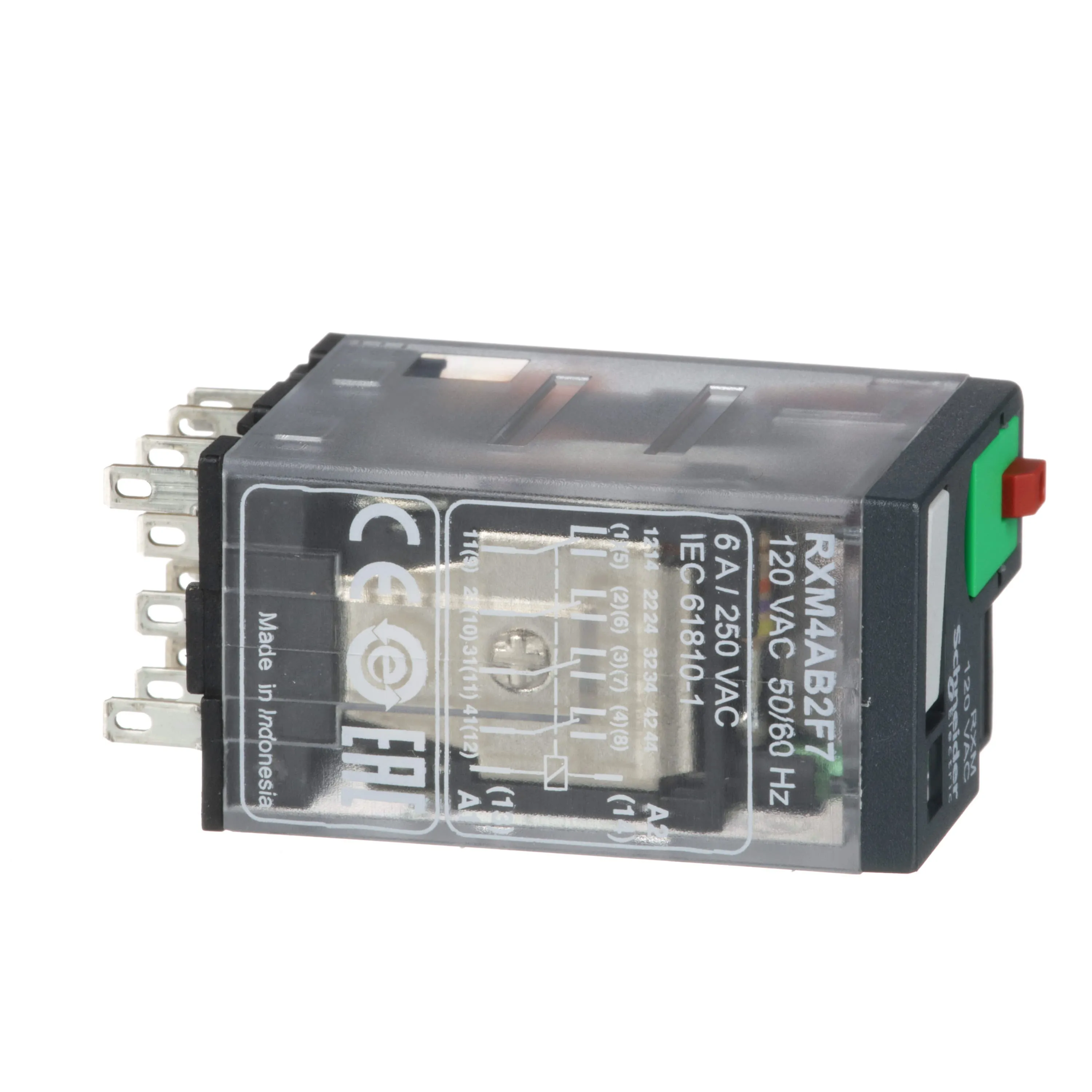

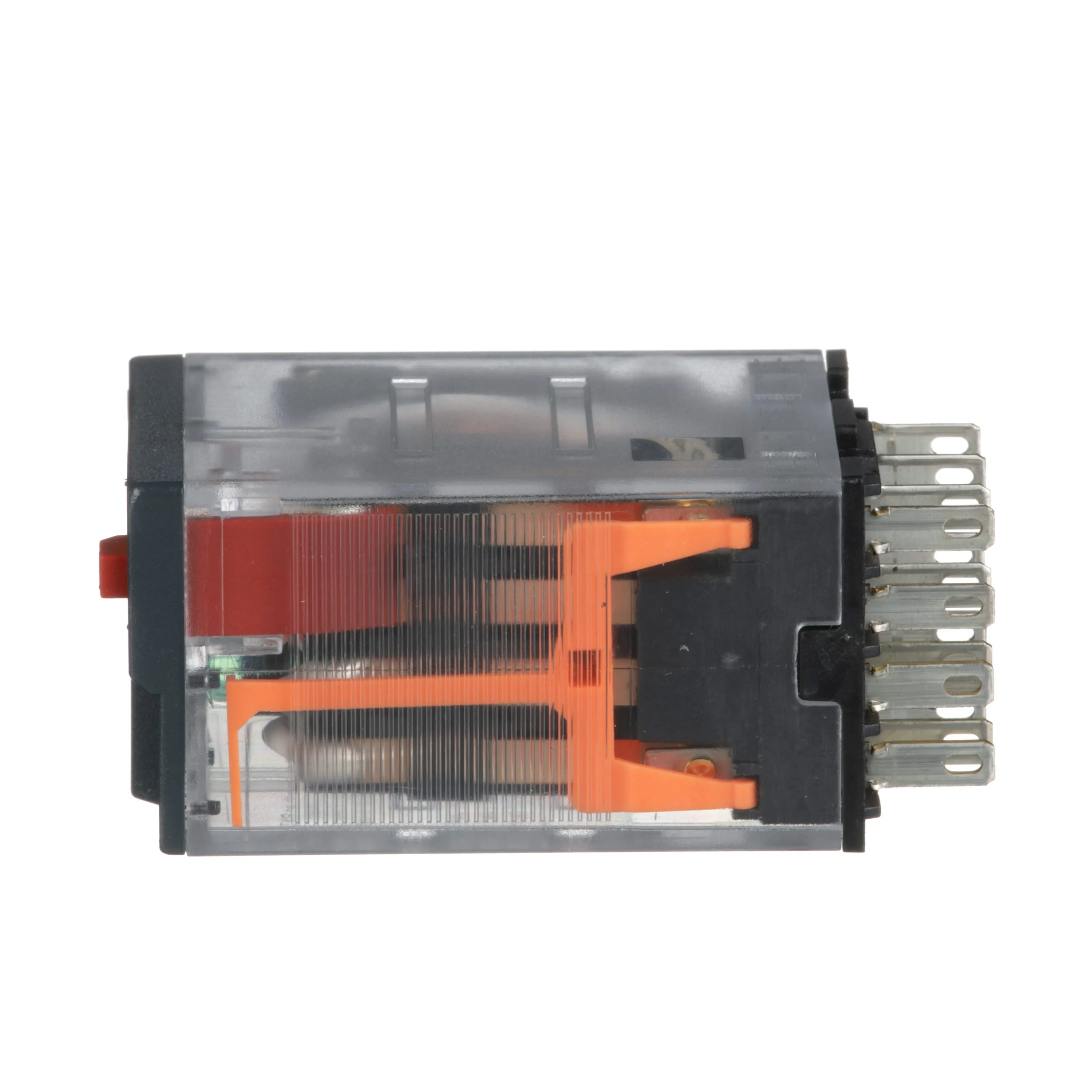

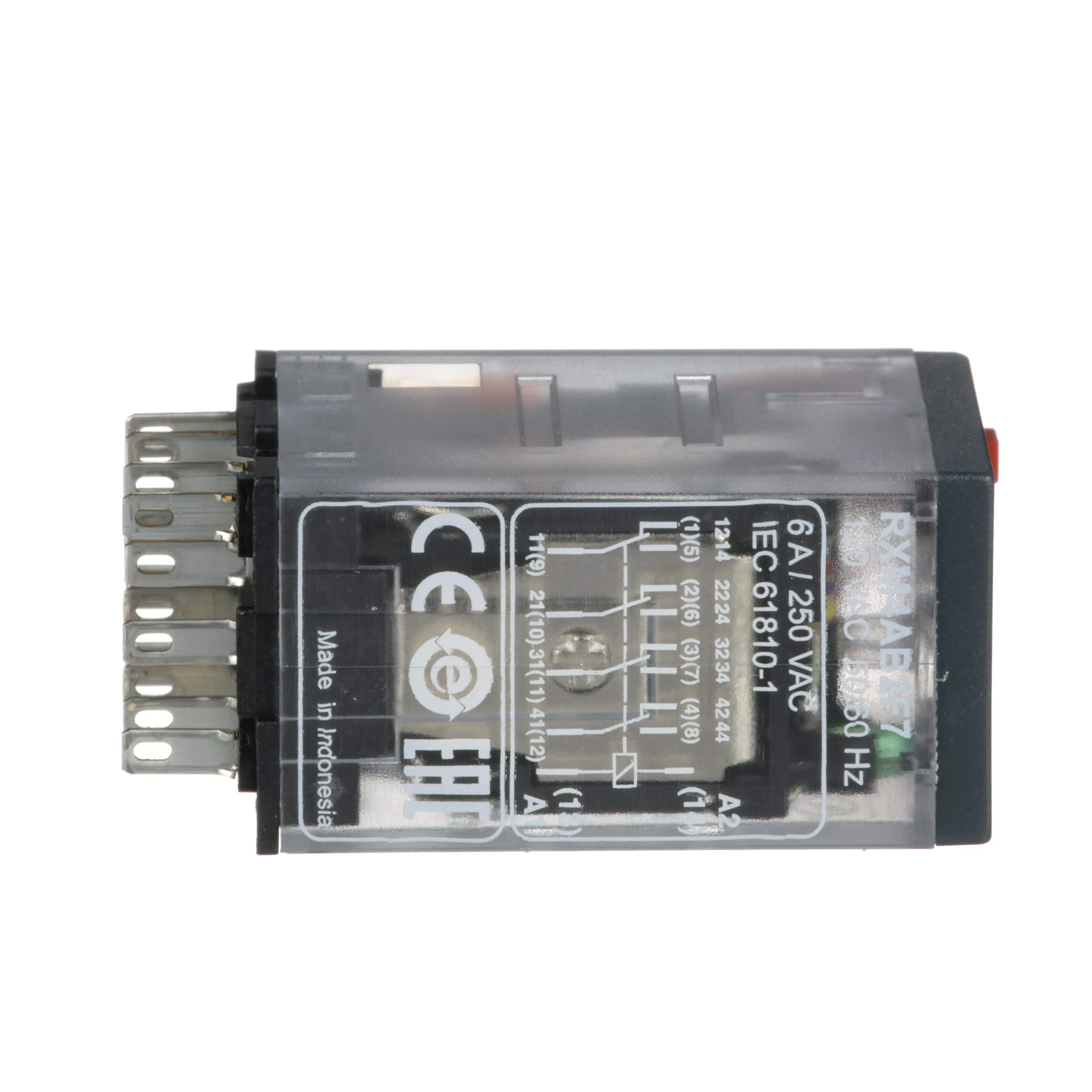

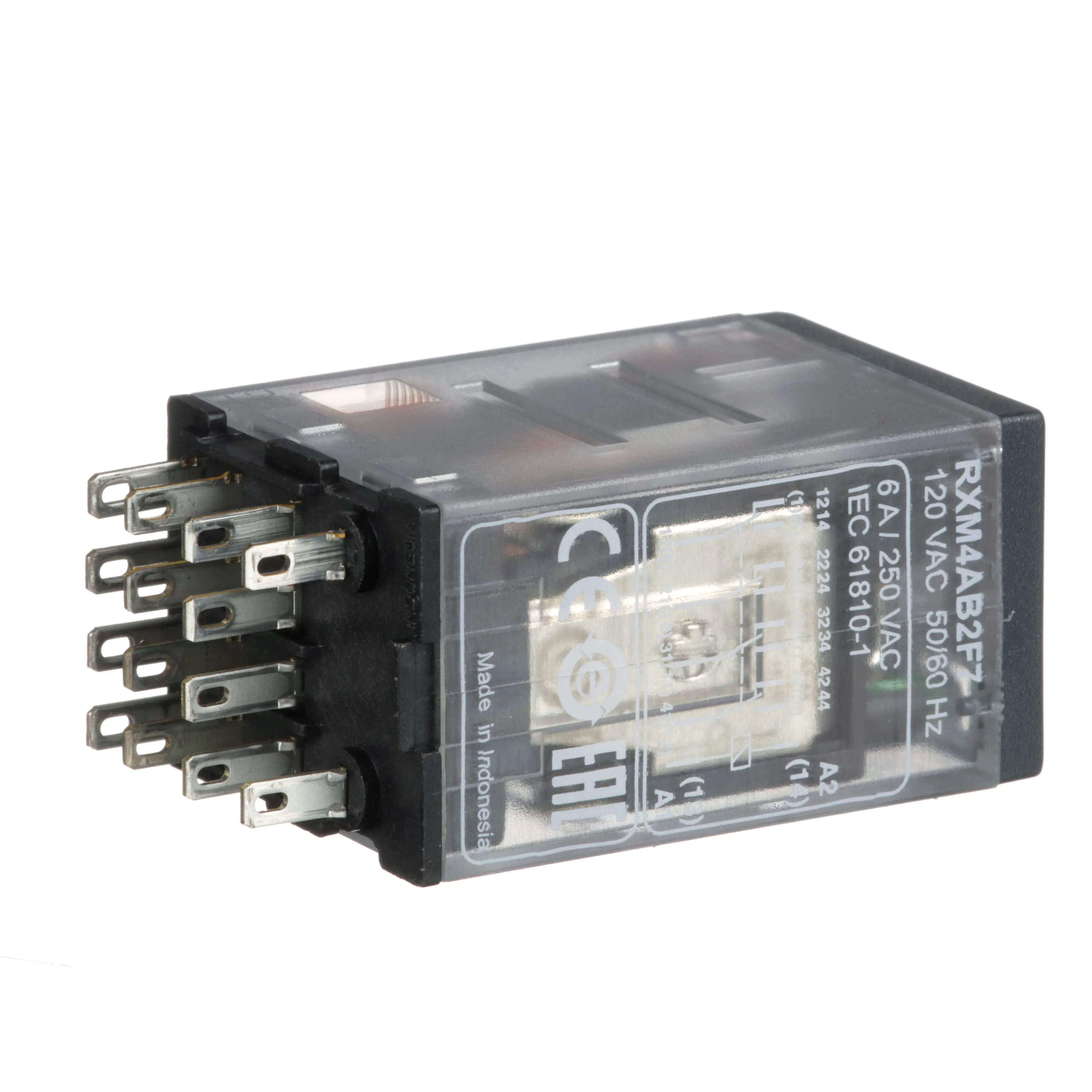

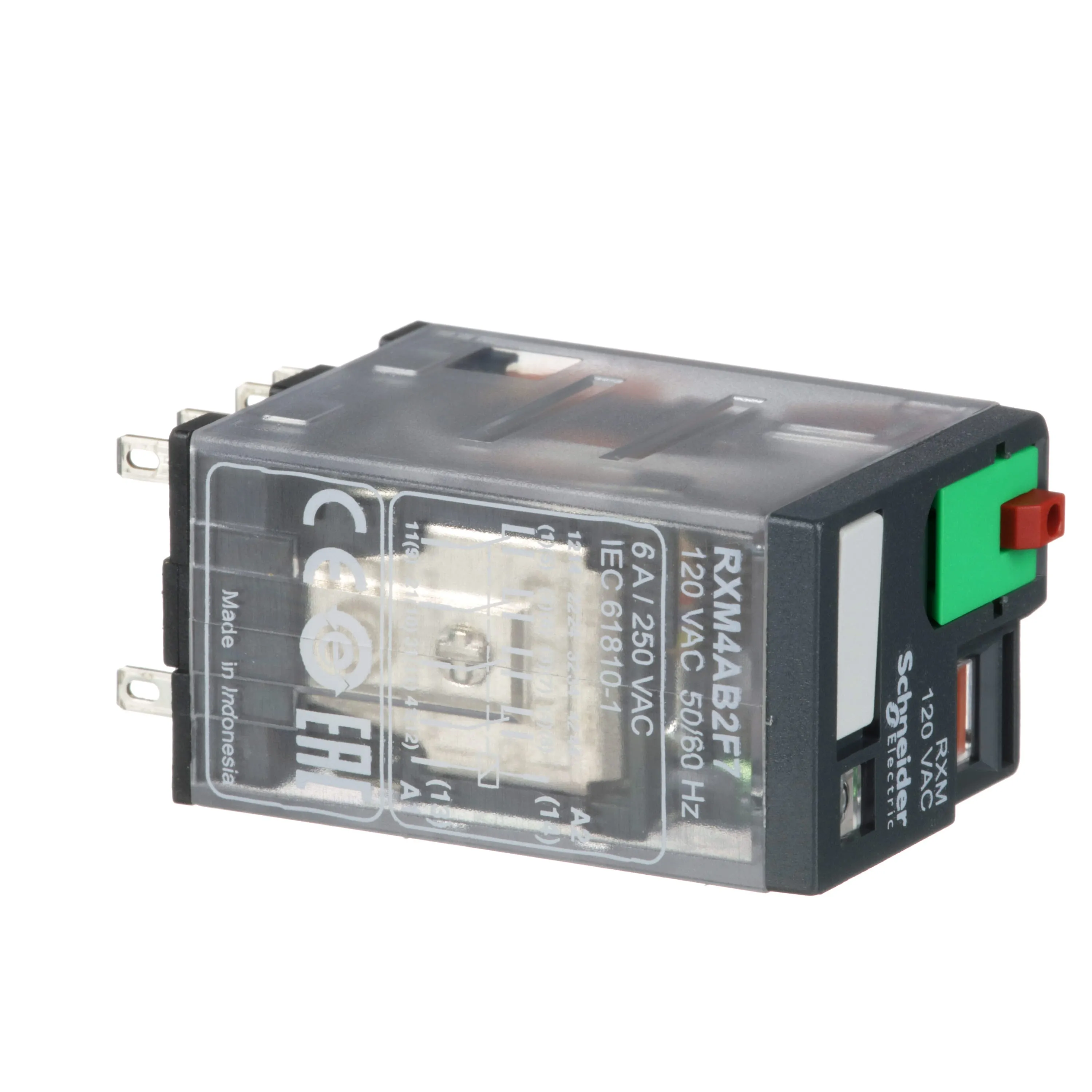

Name: Schneider Electric RXM4AB2F7
SKU: 2164778

Product Details ＋

Product Attribute	Attribute Value
Current Rating	6 A
Family Name	Zelio Electromechanical Family
Mounting Type	Socket
Primary Type	Miniature
Relay Type	General Purpose
Series
Supply Voltage	250 V
Termination	Plug-In
Type	Non-Latching
UPC Code	785901646464
Voltage, Control	120 VAC

Overview

Schneider Electric Zelio SSM1 Series — Miniature Electromechanical Relays for Automation Control:

RXM relays industrial relays bring features for easy and improved control of simple and complex automation systems.

Features:

12 A relays with 2 CO contacts, 10 A relays with 3 CO contacts, 6 A relays with

4 CO contacts, and 3 A “low level" relays with 4 CO contacts (all these relays have the same dimensions)

Sockets with mixed or separate contact terminals

Protection modules (diode, RC circuit, or varistor) common to all sockets

Metal maintaining clamp for all sockets

Plastic maintaining clamp for all sockets

2-pole bus jumper that can be used on sockets with separate contact terminals in order to simplify cabling when creating an equipotential link between the coil terminals

Clip-in legends for all sockets except RXZE2M114 and RXZE2S114S

Applications:

Machines and control panels in packaging, material handling, material working, pumping and HVAC etc.

Building and infrastructure

Energy distribution panels, public works, restaurants, commercial buildings, airports, etc.
