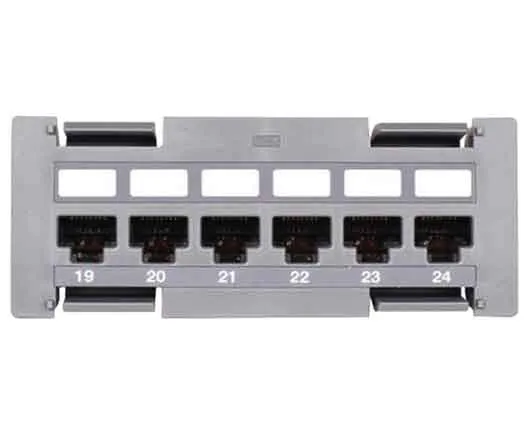

Name: 360 PATCHMAX GS3 Distribution Module, 6-Port
SKU: 2311706

Product Details ＋

Dimensions
Diameter Over Dielectric, maximum	1.168 mm\|0.046 in
Diameter Over Dielectric, minimum	0.762 mm\|0.030 in

Electrical Specifications
ANSI/TIA Category	6
Current Rating	1.5 A @ 20°C 1.5 A @ 68°F
Dielectric Withstand Voltage, RMS, conductive surface	1500 Vac @ 60 Hz
Dielectric Withstand Voltage, RMS, contact-to-contact	1000 Vac @ 60 Hz
Insulation Resistance, minimum	500 MOhm

Environmental Specifications
Flammability Rating	UL 94 V-0
Operating Temperature	-10°C to 60°C ( 14°F to 140°F)
Relative Hæmidity	Up to 95%, non-condensing
Safety Standard	cUL\|UL
Storage Temperature	-40°C to 70°C (-40°F to 158°F)

General Specifications
Total Ports, quantity	6
Cable Type	U/UTP (unshielded)
Product Type	Module
Brand	GigaSPEED? XL\|PATCHMAX?\|SYSTIMAX 360?\|SYSTIMAX?
Color	Cool gray
Modules, quantity	1
Package, quantity	1

Mechanical Specifications
Conductor Gauge, solid	22 AWG\|24 AWG
Conductor Gauge, stranded	22 AWG\|24 AWG
Conductor Type	Solid\|Stranded (7 strands)
Material Type	High-impact, flame retardant, thermoplastic
Outlet/Module Contact Plating	Precious metals
Plug Insertion Life, minimum	750 times
Plug Insertion Life, test plug	IEC 60603-7 compliant plug
Plug Retention Force, minimum	30 lbf\|133 N
Rear Termination Contact Plating	Precious metals
Rear Termination Type	IDC
Wiring	T568A\|T568B
