| Product Attribute | Attribute Value |
|---|---|
| Alternate Mfr Part Number | PLC-OSP- 24DC/ 24DC/ 2 |
| Approvals | UL Recognized, UL Listed, cUL Recognized, cUL Listed, GL, EAC, EAC, PRS, cULus Recognized, cULus Listed |
| Contact Form | SPST-NO |
| Current Rating | 3 A |
| For Use With | Phoenix Contact PLC series |
| Function | PLC |
| Mounting Type | DIN Rail |
| Relay Type | Solid State Relay |
| Series | |
| Special Features | LED Indicator ; PLC Terminal Block |
| Termination | Spring Cage |
| UPC Code | 4017918165925 |
| Voltage Rating | 3-33 VDC |
| Voltage, Control | 24 VDC |
Overview

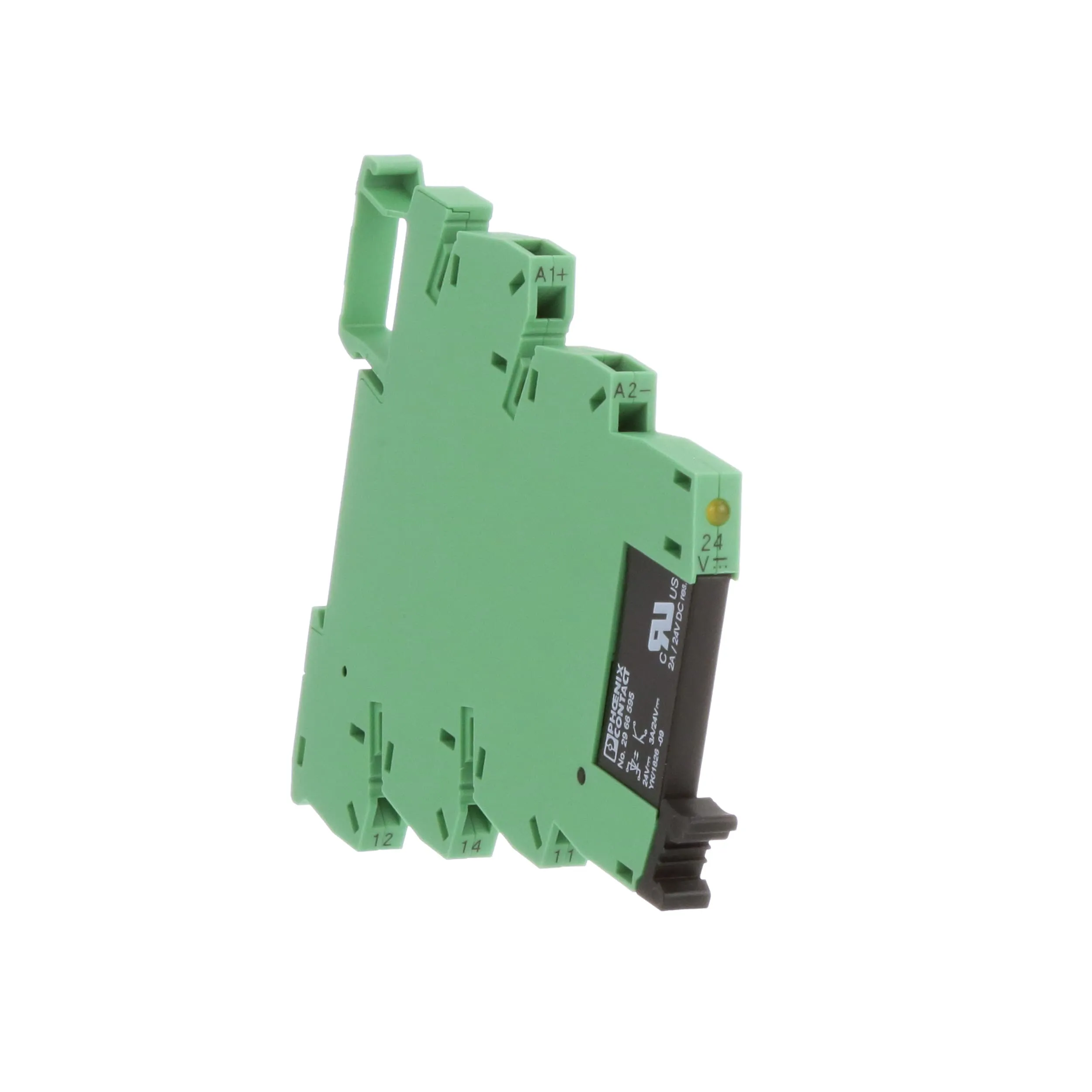

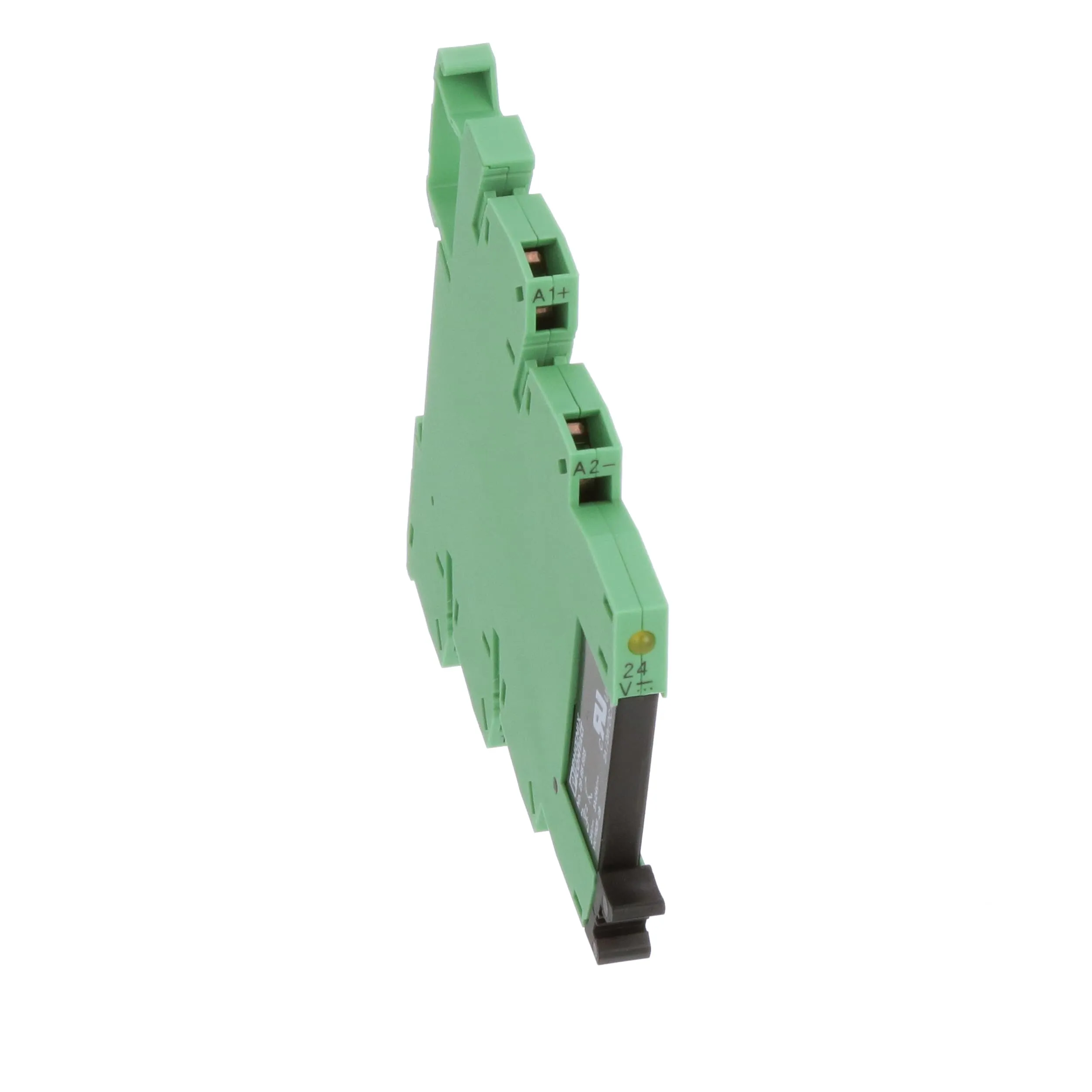

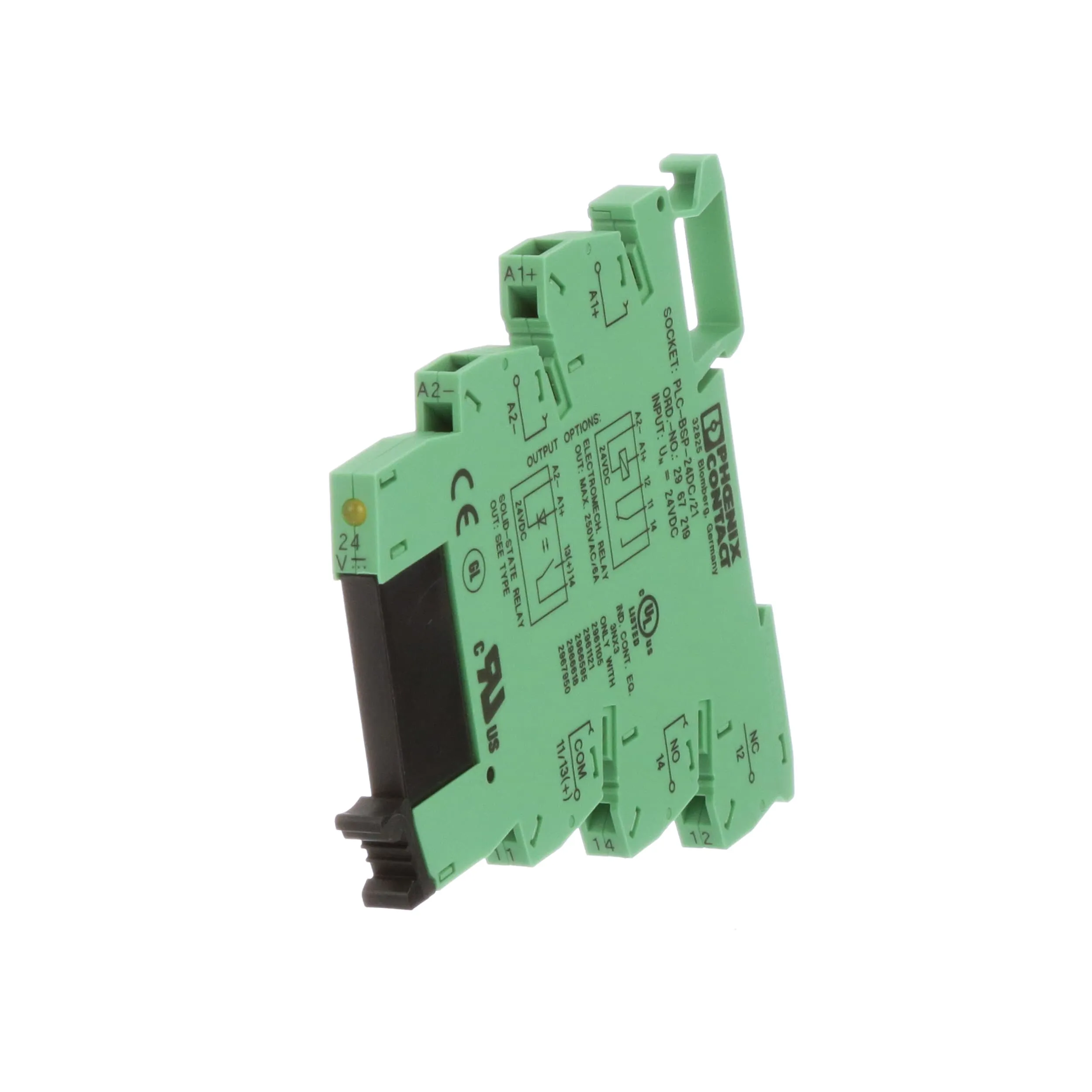

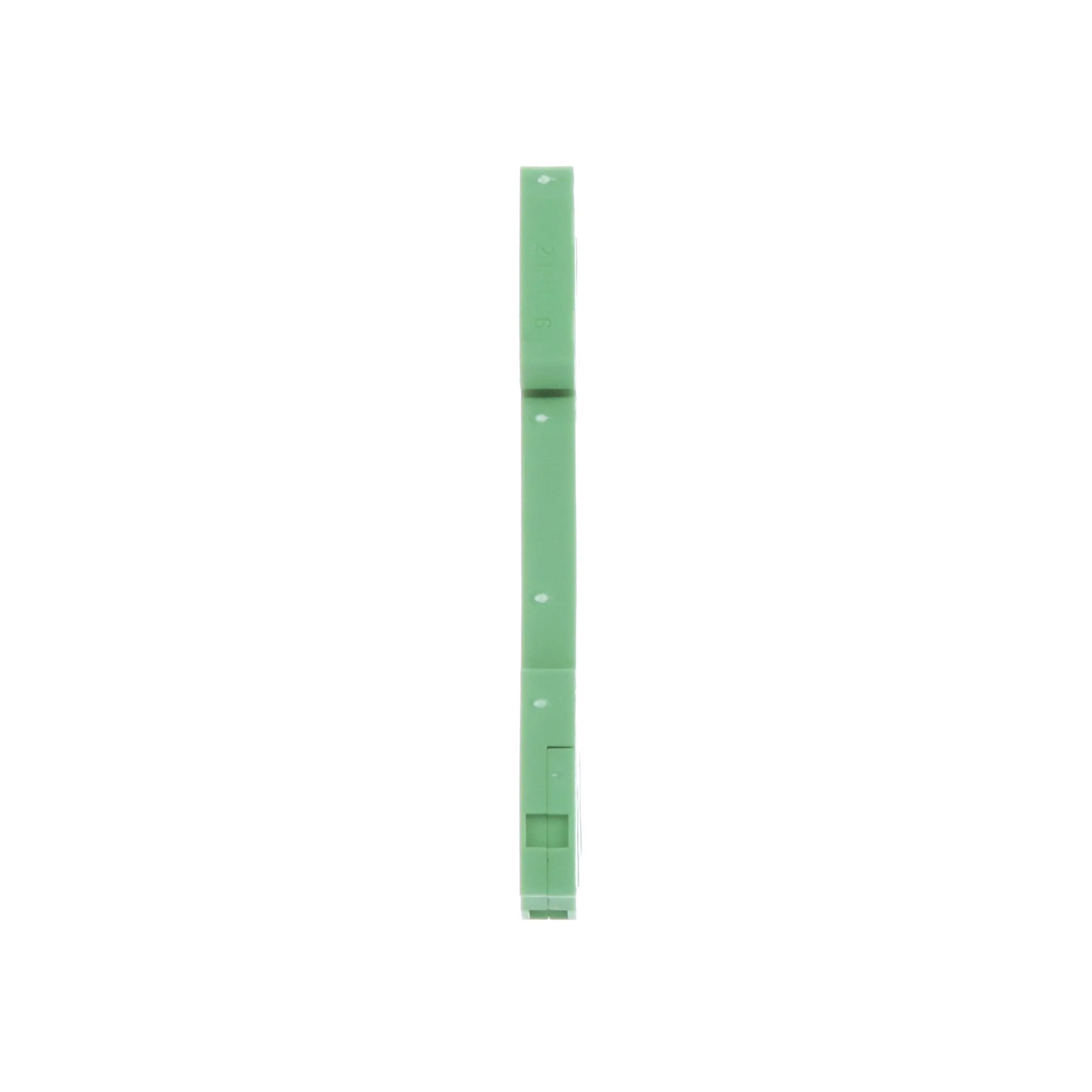

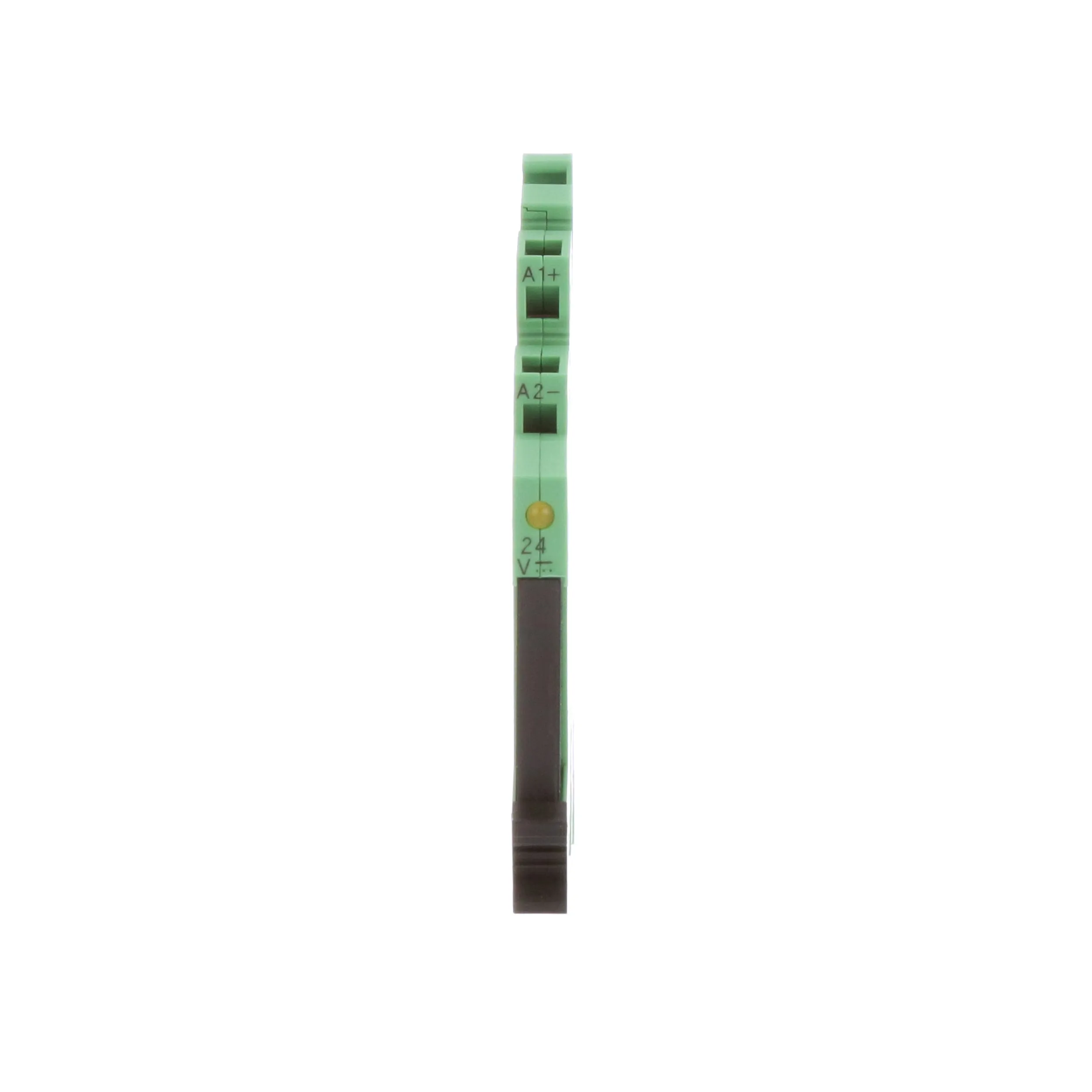

Phoenix Contact PLC-INTERFACE Series - PLC-OSP Solid State Relay Modules:
The PLC-INTERFACE relay system is the high-performance interface between the controller and system peripherals. PLC-INTERFACE provides you with a comprehensive range of highly compact, plug-in relays and solid-state relays. This includes extensive accessories and system cabling.
The PLC-INTERFACE Relay System acts as the high performance interface between the controller and system I/O devices. The new electromechanical relay with manual actuation is particularly suited for maintenance and commissioning as it can be operated manually. The PLC-INTERFACE relay system acts as the highperformance interface between the controller and system I/O devices. New variants allow you to isolate and switch signals safely in the potentially explosive areas of Zone 2. The PLC-INTERFACE relay system from Phoenix Contact acts as the high-performance interface between the controller and system I/O devices.
Features:
Series Features:
